IMPA:
| 630101/630102/630103/630104/630105/630106/630107/630108/630109/630110/630111/630112/630113/630114/630115/630116/630117/630118/630119/630120/630121/630122/630123/630124/630125/630126/630127/630128/630129/630130/630131/630132/630133/630134/630135/630136/630137/630138/630139/630140/630141/630142/630143/630144/630145/630146/630147/630148/630149/630150/630151/630152/630153/630154/630155/630156/630157/630158/630159/630160/630161/630162/630163/630164/630165/630166/630167/630168/630169/630170/630171/630172/630173/630174/630175/630176/630177/630178/630179/630180/630181/630182/630183/630184/630185/630186/630187/630188/630189/630190/630191/630192/630193/630194/630195/630196/630197/630198/630199/630200/630201/630202/630203/630204/630205 |

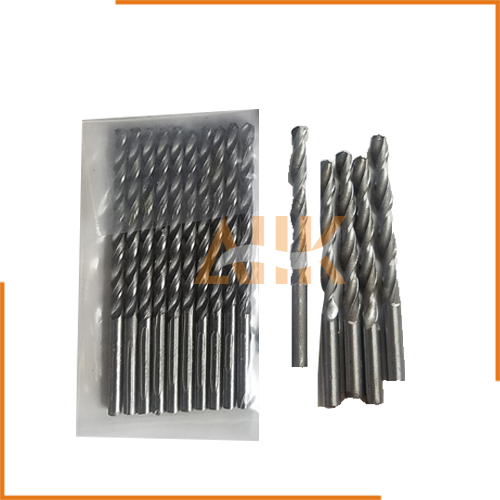

The drills are of the correctional two-flute design with helix angles, flute and point shapes selected for general purpose applications. They may be used very successfully in cast iron, steel forging and other materials.
| CODE | Diameter mm | Length mm | |
| Flute | Overall | ||
| 630101 | 0.3 | 3 | 19 |
| 630102 | 0.4 | 5 | 20 |
| 630103 | 0.5 | 5 | 20 |
| 630104 | 0.6 | 7 | 24 |
| 630105 | 0.7 | 9 | 28 |
| 630106 | 0.8 | 10 | 30 |
| 630107 | 0.9 | 11 | 32 |
| 630108 | 1.0 | 12 | 34 |
| 630109 | 1.1 | 14 | 36 |
| 630110 | 1.2 | 16 | 38 |
| 630111 | 1.3 | 16 | 38 |
| 630112 | 1.4 | 18 | 40 |
| 630113 | 1.5 | 18 | 40 |
| 630114 | 1.6 | 20 | 43 |
| 630115 | 1.7 | 20 | 43 |
| 630116 | 1.8 | 22 | 46 |
| 630117 | 1.9 | 22 | 46 |
| 630118 | 2.0 | 29 | 55 |
| 630119 | 2.1 | 29 | 55 |
| 630120 | 2.2 | 33 | 58 |
| 630121 | 2.3 | 33 | 58 |
| 630122 | 2.4 | 35 | 61 |
| 630123 | 2.5 | 35 | 61 |
| 630124 | 2.6 | 37 | 64 |
| 630125 | 2.7 | 37 | 64 |
| 630126 | 2.8 | 39 | 67 |
| 630127 | 2.9 | 42 | 71 |
| 630128 | 3.0 | 42 | 71 |
| 630129 | 3.1 | 42 | 71 |
| 630130 | 3.2 | 42 | 71 |
| 630131 | 3.3 | 45 | 73 |
| 630132 | 3.4 | 45 | 73 |
| 630133 | 3.5 | 45 | 73 |
| 630134 | 3.6 | 48 | 76 |
| 630135 | 3.7 | 48 | 76 |
| 630136 | 3.8 | 48 | 76 |
| 630137 | 3.9 | 51 | 79 |
| 630138 | 4.0 | 54 | 83 |
| 630139 | 4.1 | 54 | 83 |
| 630140 | 4.2 | 54 | 83 |
| 630141 | 4.3 | 54 | 83 |
| 630142 | 4.4 | 56 | 86 |
| 630143 | 4.5 | 56 | 86 |
| 630144 | 4.6 | 56 | 86 |
| 630145 | 4.7 | 59 | 89 |
| 630146 | 4.8 | 59 | 89 |
| 630147 | 4.9 | 62 | 92 |
| 630148 | 5.0 | 62 | 92 |
| 630149 | 5.1 | 62 | 92 |
| 630150 | 5.2 | 64 | 95 |
| 630151 | 5.3 | 64 | 95 |
| 630152 | 5.4 | 64 | 95 |
| 630153 | 5.5 | 64 | 95 |
| 630154 | 5.6 | 67 | 98 |
| 630155 | 5.7 | 67 | 98 |
| 630156 | 5.8 | 67 | 98 |
| 630157 | 5.9 | 67 | 98 |
| 630158 | 6.0 | 70 | 102 |
| 630159 | 6.1 | 70 | 102 |
| 630160 | 6.2 | 70 | 102 |
| 630161 | 6.3 | 70 | 102 |
| 630162 | 6.4 | 73 | 105 |
| 630163 | 6.5 | 73 | 105 |
| 630164 | 6.6 | 73 | 105 |
| 630165 | 6.7 | 73 | 105 |
| 630166 | 6.8 | 73 | 105 |
| 630167 | 6.9 | 73 | 105 |
| 630168 | 7.0 | 73 | 105 |
| 630169 | 7.1 | 75 | 108 |
| 630170 | 7.2 | 75 | 108 |
| 630171 | 7.3 | 75 | 108 |
| 630172 | 7.4 | 78 | 111 |
| 630173 | 7.5 | 78 | 111 |
| 630174 | 7.6 | 78 | 111 |
| 630175 | 7.7 | 81 | 114 |
| 630176 | 7.8 | 81 | 114 |
| 630177 | 7.9 | 81 | 114 |
| 630178 | 8.0 | 81 | 114 |
| 630179 | 8.1 | 84 | 117 |
| 630180 | 8.2 | 84 | 117 |
| 630181 | 8.3 | 84 | 117 |
| 630182 | 8.4 | 87 | 121 |
| 630183 | 8.5 | 87 | 121 |
| 630184 | 8.6 | 87 | 121 |
| 630185 | 8.7 | 87 | 121 |
| 630186 | 8.8 | 89 | 124 |
| 630187 | 8.9 | 89 | 124 |
| 630188 | 9.0 | 89 | 124 |
| 630189 | 9.1 | 89 | 124 |
| 630190 | 9.2 | 92 | 127 |
| 630191 | 9.3 | 92 | 127 |
| 630192 | 9.4 | 92 | 127 |
| 630193 | 9.5 | 92 | 127 |
| 630194 | 9.6 | 95 | 130 |
| 630195 | 9.7 | 95 | 130 |
| 630196 | 9.8 | 95 | 130 |
| 630197 | 9.9 | 95 | 130 |
| 630198 | 10 | 95 | 130 |
| 630199 | 10.5 | 100 | 137 |
| 630201 | 11 | 103 | 140 |
| 630202 | 11.5 | 106 | 143 |
| 630203 | 12 | 111 | 149 |
| 630204 | 12.5 | 114 | 152 |
| 630205 | 13 | 114 | 152 |
