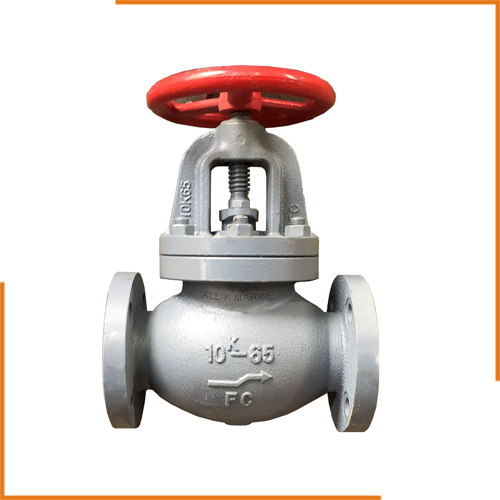

Marine Cast Iron 10 kgf/cm2 Screw Down Check Globe Valves F-7375

Marine Cast Iron 10 kgf/cm2 Screw Down Check Globe Valves F-7375

Category:

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
INQUIRY

IMPA Code:751131/751132/751133/751134/751135/751136/751137

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
CODE Size
mm		 Dimensions mm Weight
Kgs
Face
to
Face		 Flange
Diam.		 Flange Bolt Hole
Pitch Number Hole
Globe Valve F-7375
751131 50 220 155 120 4 19 19.9
751132 65 270 175 140 4 19 28.6
751133 80 300 185 150 8 19 32.5
751134 100 350 210 175 8 19 48.70
751135 125 420 250 210 8 23 73
751136 150 490 280 240 8 23 104
751137 200 570 330 290 12 23 161
Angle Valve F-7376
751141 50 120 155 120 4 19 18.2
751142 65 130 175 140 4 19 25.3
751143 80 140 185 150 8 19 27.5
751144 100 160 210 175 8 19 40.6
751145 125 180 250 210 8 23 69.8
751146 150 205 280 240 8 23 81.2
751147 200 230 330 290 12 23 124
