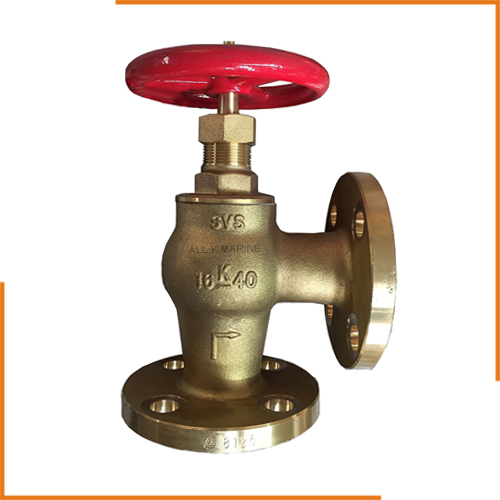

Marine Bronze 16 kgf/cm2 Screw Down Check Angle Valves Union Bonnet Type F-7414

Category:

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
INQUIRY

IMPA Code:751286/751287/751288/751289/751290

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
CODE Size
mm
Dimensions mm Weight
Kgs
Face
to
Face
Flange
Diam.
Flange Bolt Hole
Pitch Number Hole
Angle Valve F-7414
751286 15 70 95 70 4 15 2.86
751287 20 75 100 75 4 15 3.75
751288 25 85 125 90 4 19 5.38
751289 32 95 135 100 4 19 6.84
751290 40 100 140 105 4 19 8.34
