Cylinder Gauges

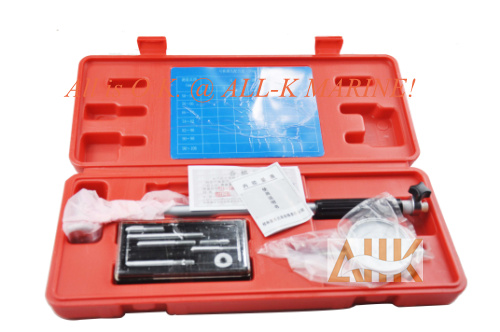

IMPA: 651411/651412/651413/651414/651415/651416 (in the pic it’s 651413)
1.Cylinder Gauges
2.This range of gauges is designed mainly for the measurement of cylinder bores but the ovality, taper, wear and other bore conditions may be measured with equal ease.
3.Furnished without a dial gauge. When ordering, please indicate if the dial gauge is required.
| CODE | Measuring Range | Graduation | Length of Below Grip | No.of Anvil |
| 651411
12 13 |
18~35mm
35~60” 50~100” |
0.01mm | 100mm
150” 150” |
9
6 11 |
| 651414
15 16 |
100~160”
160~250” 250~400” |
0.01mm | 150”
250” 250” |
13
6 5 |
